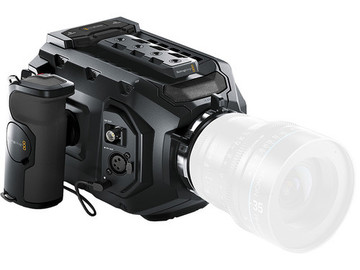

Now in a smaller, more handheld friendly form factor, the URSA Mini 4K Digital Cinema Camera from Blackmagic Design can record cinematic images with its Super-35mm 4K, global-shutter sensor with 12 stops of dynamic range. The ergonomic body design is balanced and can be used for many different styles of filmmaking. The EF-mount is compatible with a plethora of popular lenses, opening up different aesthetic options. A rosette on the side of the camera accepts the included side handle which can control start/stop via a LANC connection.
To produce cinematic images, the URSA Mini can record raw sensor data in the CinemaDNG format onto CFast 2.0 memory cards at up to 60 fps. The raw files preserve the full dynamic range and color tonality output from the sensor so you can have greater control over the look in post-production. However, data-heavy uncompressed raw files aren't always easy to deal with on-set, so in addition to uncompressed raw recording, the 4K URSA Mini provides compressed raw recording at a 3:1 compression ratio to save space while retaining post-production flexibility.
The URSA Mini also records UHD (3840 x 2160) and 1080p video using ready-to-edit ProRes files in many different flavors within the 444 and 422 chroma subsampling variations depending on your workflow. Starting at the high end, UHD footage can be recorded in ProRes 444 XQ at a rate of 312.5 MB/s all the way down to 1080p in a ProRes 422 Proxy file coming in at a relatively paltry 5.6 MB/s data rate. Since the camera accepts dual CFast cards, you can record for long periods of time by having the camera switch cards when one is full.
SENSOR SIZE 21.12 x 11.88 (Super-35)
EFFECTIVE RESOLUTION 4000 x 2160
DYNAMIC RANGE 12 stops
FRAME RATES 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
4000 x 2160
3840 x 2160
1920 x 1080
